Current/Voltage Protection Relay – S24 Series

  • PROTECTA (HUNGARY)

The IED EP+ S24 Series is member of the EuroProt+ numerical protection relay, made by Protecta Co. Ltd. The EuroProt+ type complex protection in respect of hardware and software is modular device. The modules are assembled and configured according to the requirements, and then the software determines the functions. The IED EP+ S24 Series is  contained a special selection of the EuroProt+ modules, bearing in mind the cost effective realization. The IED EP+ S24 Series is divided into several different variants corresponding to the scope of application.

Depending on the standard configuration chosen (Variant 1, Variant2,…), the IED is adapted to the protection of medium-voltage feeders in isolated neutral, resistance earthed, compensated and solidly earthed networks. Once the application-specific settings have been defined for the standard configuration IED, it can be put into service directly. Areas of application include protection functions for a large variety of applications, e.g. transformer differential and restricted earth fault protection, frequency and voltage based protection, motor protection, thermal overload protection.

Product details

GENERAL FEATURES

  • Native IEC 61850 IED with Edition 1 & 2 compatibility
  • Module layouts with options 42 or 84 HP wide rack size (height: 3U)
  • The pre-defined factory configuration can be customized to the user’s specification with the powerful EuroCAP tool
  • Flexible protection and control functionality to meet special customer requirements
  • Different HMI Types: advanced HMI with color touchscreen and black-and-white display with 4 tactile push buttons. An embedded web server and extended measuring, control and monitoring functions are also available for both types
  • User configurable LCD user screens, which can display SLDs (Single Line Diagrams) with switchgear position indication and control as well as setting values, measurement values, event and fault information (timestamp, function block, fault phase, fault current...)
  • 8 setting groups available as default. The number of setting groups can be up to 20 as user’s requirement
  • Enhanced breaker monitoring and control
  • High capacity disturbance recorder (DRE) and event logging in non-volatile memory:
    o DRE can store more than 64 records.
    o Each DRE recording can be configured up to 32 analogue and 64 digital signal channels with duration up to 10s and sampling rate up to 2kHz.
    o Event recorder can store more than 10,000 events.
  • The records can be read out from IED in the standard COMTRADE file format (IEEE Std C37.111) via exist communication connection (such as IEC61850) or even examined online. Every single record stored in 3 files with the same name and the following extensions: .dat, .cfg,.inf
  • Several mounting methods: Rack; Flush mounting; Semiflush mounting; Wall mounting; Wall-mounting with terminals; Flush mounting with IP54 rated cover.
  • Wide range of communication protocols:
    o Ethernet-based communication protocol: IEC61850, DNP3.0 TCP, IEC60870-5-104, Modbus TCP
    o Serial communication protocol: DNP3.0, IEC60870-5- 101, IEC60870-5-103, MODBUS, SPA
  • Legacy network based protocols via 100Base-FX and 10/100Base-TX (RJ45)
  • Optional communication ports: Fiber Ethernet (MM/ST, SM/FC), RJ45, Serial POF, Serial glass fiber, RS-485/422
  • Handling several communication protocols simultaneously
  • Built-in self-monitoring to detect internal hardware or software errors
  • Time synchronization protocol: NTP/SNTP, Minute pulse, Legacy protocol, IRIG-B
  • Integrated advanced cyber security - Conformity with the Cyber Security requirements in accordance with NERCCIP, IEEE 1686, BDEW Whitepaper and IEC 62351-8 standard and recommendation. Passwords are required when logging into the device for: access, control, setting, manage,...

SCOPE OF APPLICATION

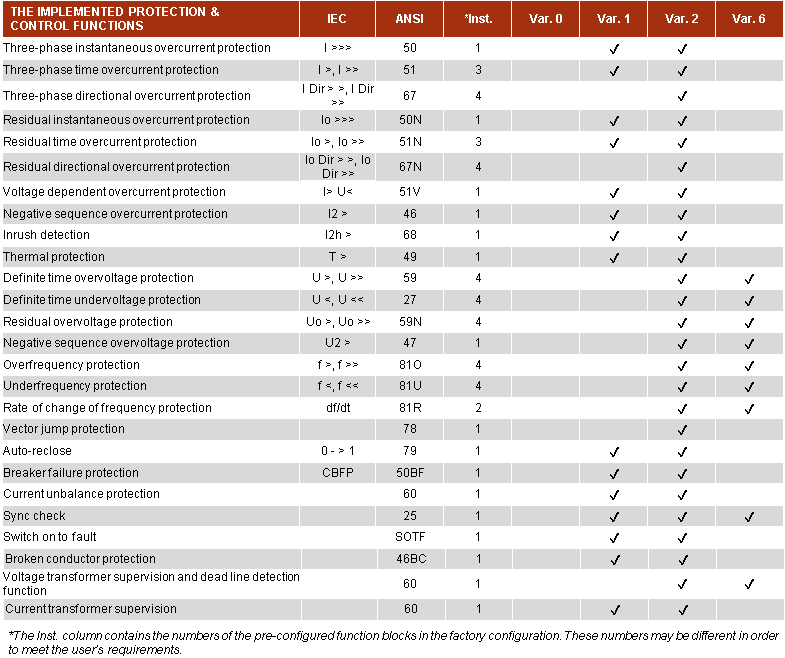

The IED-EP+ S24 Series is available in four predefined standard configurations to suit the most common feeder management application.

  • Variant 0 serves as a simple bay control unit.
  • Variant 1 is configured for non-directional overcurrent protection relay.
  • Variant 2 is configured for directional overcurrent protection relay.
  • Variant 6 is dedicated for those application where is only voltage and frequency based protection functions are required.
